Decorative metal ring mesh Safety protection chain armor

Short Description:

The metal ring mesh is named ring mesh, ring mesh curtain. It is composed of many small rings with the size of 3.85mm-30mm. 304 / 316 stainless steel, galvanized steel, brass and copper materials are suitable for chain link mesh. Stainless steel ring mesh is the most popular in the international market.


Product Detail

Product Tags

Introduce of metal ring mesh

There are two types of chain link mesh: Welded ring mesh and non welded ring mesh.
Welded ring mesh is suitable for anti cutting gloves, anti cutting cloth and hat. Some special material rings are used in military field and have bulletproof and shielding functions.
Solderless ring mesh is used for ceiling curtains, curtains and room dividers, because solderless ring mesh is cheaper than welded ring mesh, but it is strong enough for curtains, not easy to break and easy to make various shapes.

Specification of ring mesh

The ring mesh is made of carbon steel wire or stainless steel wire or copper wire and consists of rings.

Material Wire diameter Ring size Weight
stainless steel 304,316 0.53mm 3.8mm 3.8kgs/m2
Stainless steel 304,316 1mm 8mm 4.2kgs/m2
Stainless steel 304,316 1.2mm 10mm 4.0kgs/m2
Stainless steel 304,316 2mm 20mm 6.8kgs/m2
Stainless steel 304,316 3mm 30mm 10kgs/m2

Surface treatment of metal ring mesh

A: Vacuum plating is suitable for stainless steel ring mesh
Argon is injected under vacuum, argon strikes the target, and the separated components of the target are adsorbed by conductive products to form a uniform and smooth surface layer.
Baking paint - for steel, steel and copper
Baking varnish is the most commonly used surface treatment method in the production of metal ring curtain. Mix the pigment to the desired color, then apply it to the metal chain curtain, and finally bake the surface at high temperature to obtain a lasting color. And the lowest cost.

Hanging method of metal ring mesh

The ring net curtain can be hung by any qualified installer using a carrier with an integral hook from a solid traditional track. Choose from these 5 methods: small washer, large washer, ring, label top and continuous pocket.

Decorative metal ring mesh Safety protection chain armor03
Decorative metal ring mesh Safety protection chain armor03
Decorative metal ring mesh Safety protection chain armor03
nznja (11)
nznja (10)

  • Previous:
  • Next:

  • Write your message here and send it to us

    Related products

    • Room exterior wall decoration Laser cut carved metal screen

      Room exterior wall decoration Laser cut carved ...

      Specification of laser cut carved decorative metal screen Item Description Material Aluminum sheet, Stainless steel sheet, corten steel Thickness 2mm,2.5mm,3mm,4mm,5mm,6mm,8mm,9mm,10mm,15mm Size customized size Max. size 1800mm*6000mm Surface Treatment Powder coating, PVDF Color Any RAL colors for your choice Pattern (design) Any patterns we can customized as your needing Application of laser cut carved decorative metal screen 1. Any interior deco...

    • Perforated aluminum plate for curtain wall decorative

      Perforated aluminum plate for curtain wall deco...

      Specification of perforated aluminum plate The thickness of perforated aluminum plate of curtain wall is 1.5mm, 2.0mm, 2.5mm, 3.0mm and 4.0mm. The conventional size of perforated aluminum plate is 1000 * 20001200 * 2400, which can also be customized. The specific unit price of perforated aluminum plate needs to be determined according to the thickness of perforated aluminum plate and the difficulty of processing. Generally, the quotation is made after the customer pr...

    • Stainless steel glass laminated decorative wire mesh

      Stainless steel glass laminated decorative wire...

      There are plane type, arc hanging method and special modeling type: the metal curtain wall net is visually transparent, open, space saving, simple and convenient assembly. It has more use functions and more decorative effects than other materials, and is more in line with the requirements of environmental protection and fire safety. Characteristics of glass sandwich decorative mesh 1. The glass metal decorative mesh is incombustible, high-strength and solid, and the ...

    • Architectural decorative metal weaving mesh curtain wall spiral mesh

      Architectural decorative metal weaving mesh cur...

      Specification of decorative spiral mesh NO. Mesh Reference Material Spiral thickness x width Crossed rod diameter Spiral pitch Crossed rod pitch Weight 1 SK-2001 Stainless steel 201,304,316, 316L and so on; Low carbon steel 1.0mm x 1.6mm 1.5mm 8mm 12mm 6.0 KG/m² 2 SK-2002 1.0mm x 1.6mm 1.2mm 13mm 8.0mm 3.0 KG/m² 3 SK-2003 1.0mm x 4.0mm 2.0mm 13mm 12mm 11.0KG/m² 4 SK-2004 1.4mm x 2.3mm 2.0mm 11mm 18mm 7.5 KG/m² 5 SK-2005 1.4mm x 2.3mm 2.0mm 12mm 23mm 6.5 KG/m² 6 SK-2006 1.0mm x ...

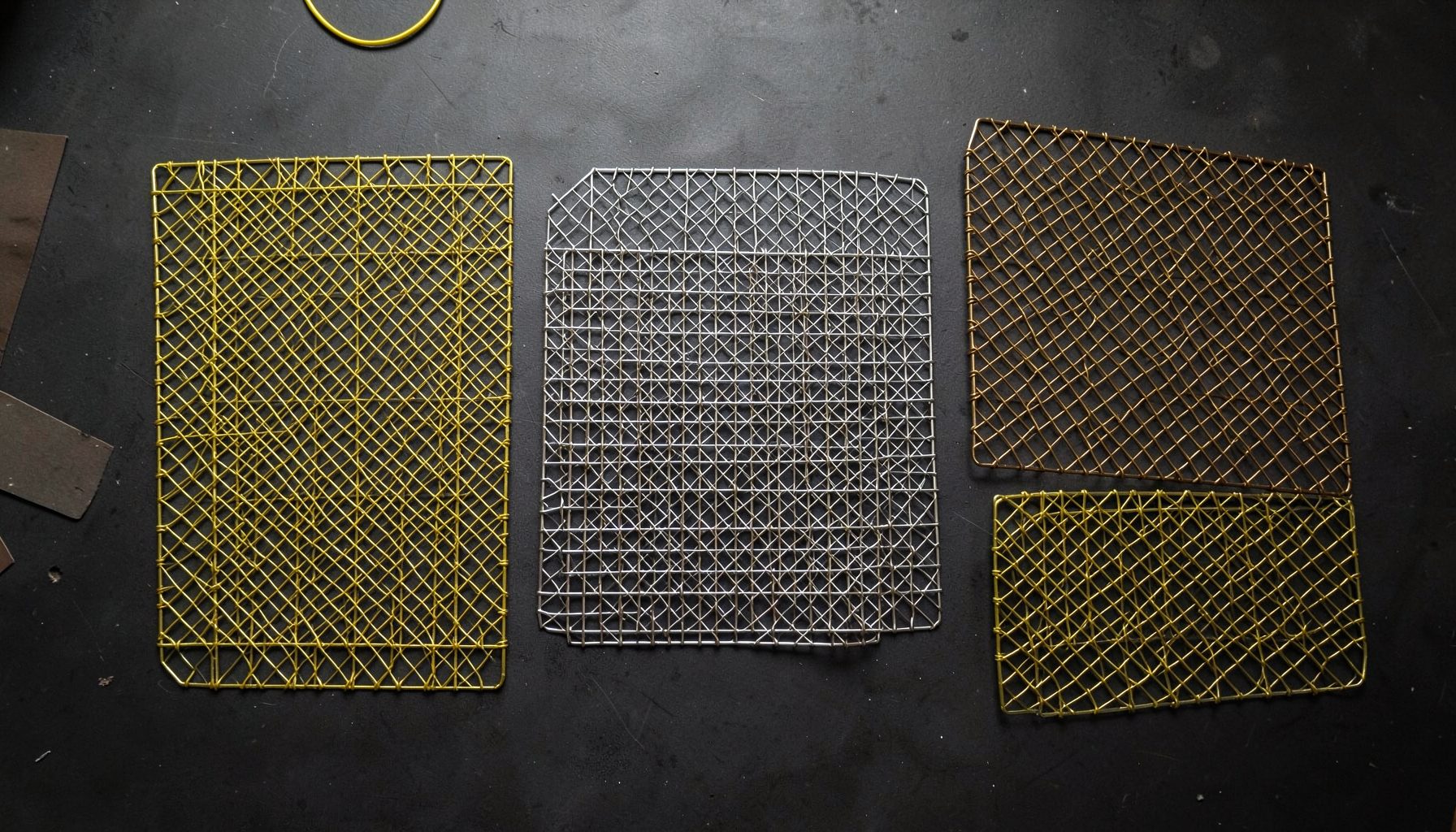

    • Woven metal mesh for elevator facade decoration
