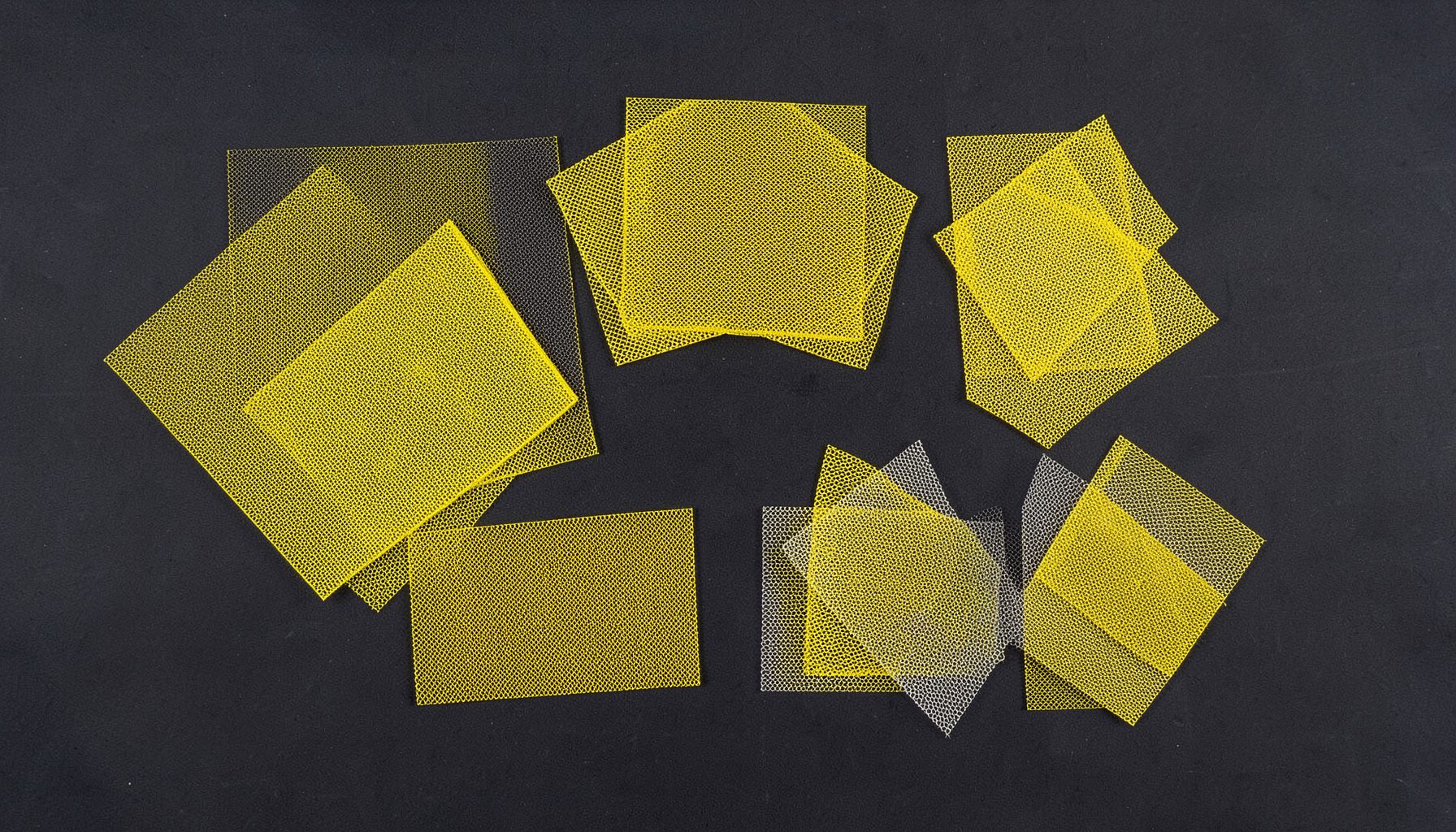

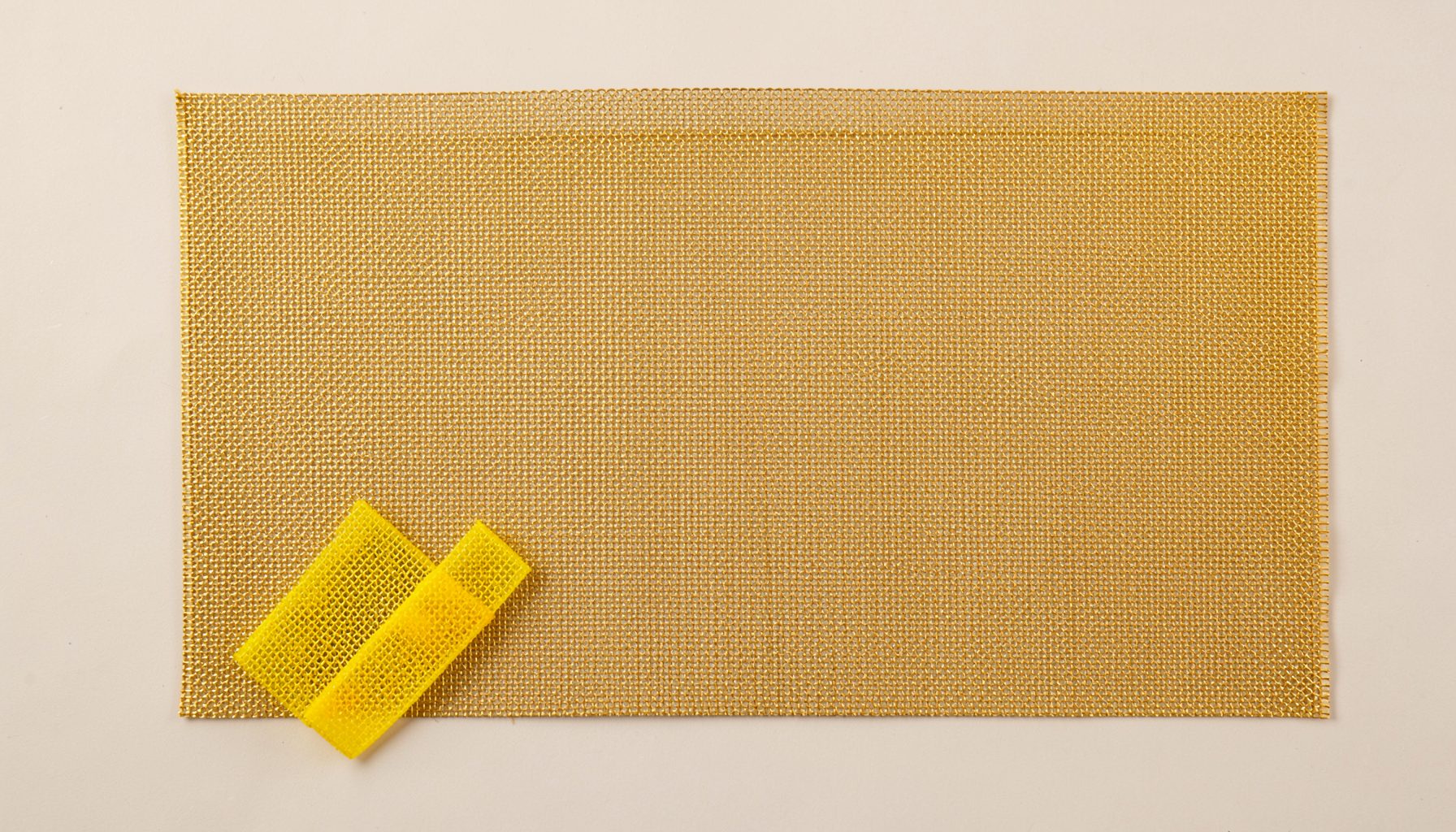

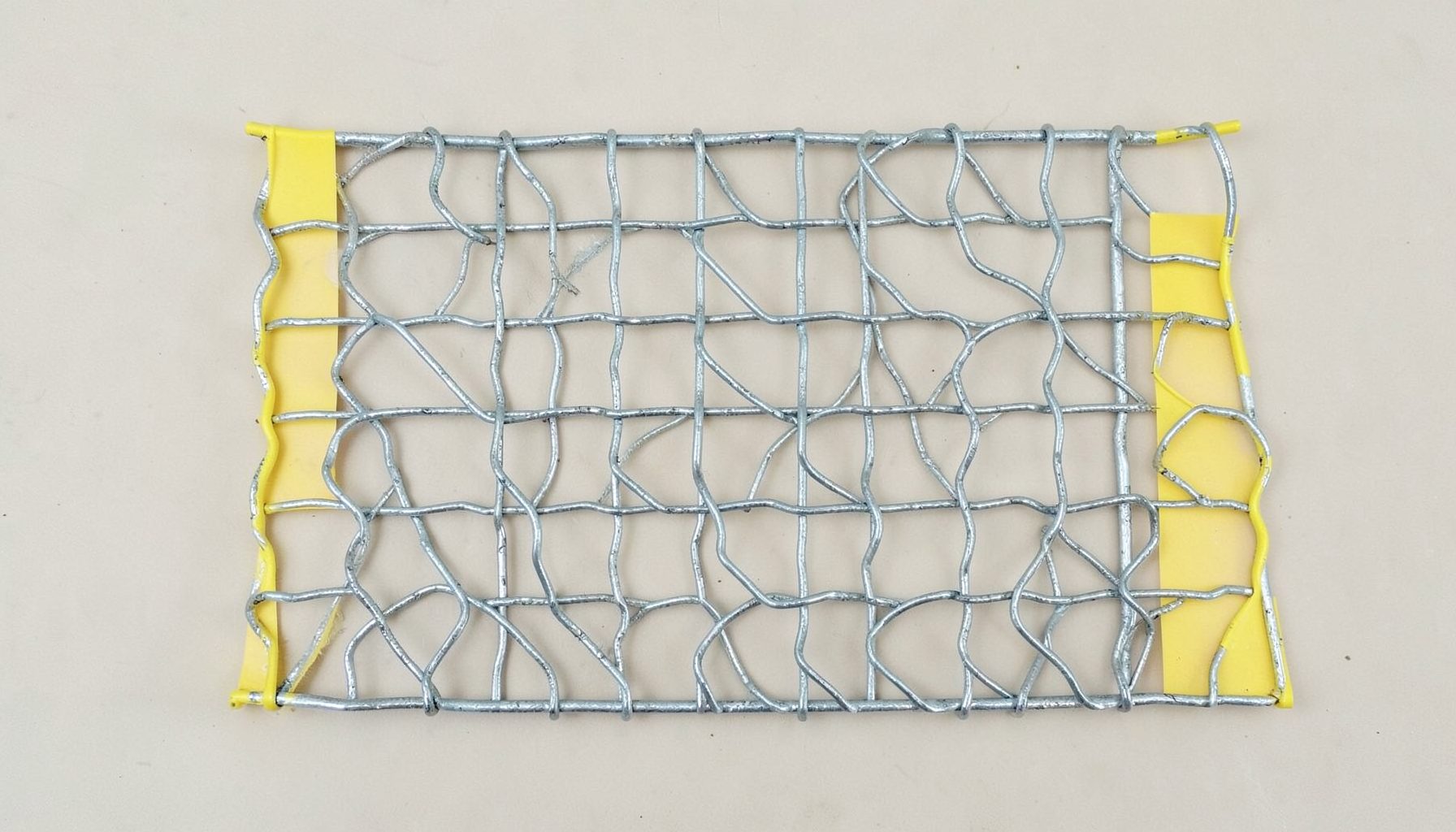

304 plain weave stainless steel wire mesh
1.the advantages of 316 stainless steel mesh:
18Cr-12Ni-2.5Mo is added with Mo, so its corrosion resistance, atmospheric corrosion resistance and high temperature strength are particularly good. Used under harsh conditions, it is less susceptible to corrosion than other chromium-nickel stainless steels in salt water, sulphur water or in halogen salts. The corrosion resistance is better than 304 stainless steel mesh, and it has good corrosion resistance in the pulp and paper production process. Moreover, 316 stainless steel mesh is more resistant to corrosion by the ocean and corrosive industrial atmosphere than 304 stainless steel mesh.
2.Advantages of 304 stainless steel mesh:
304 stainless steel mesh has excellent stainless corrosion resistance and good intergranular corrosion resistance. In the experiment, it is concluded that 304 stainless steel mesh has strong corrosion resistance in nitric acid with a concentration of ≤65% and below the boiling temperature. It also has good corrosion resistance to alkaline solutions and most organic and inorganic acids.
| Mesh | Dia(mm) | 1X30 meters roll net weight( kg) | Aperture(mm) |
| 1 | 2 | 60 | 23.4 |
| 1 | 3 | 135 | 22.4 |
| 2 | 1.19 | 42.48 | 11.51 |
| 2 | 1.5 | 67.5 | 11.2 |
| 2 | 1.6 | 76.8 | 11.1 |
| 2 | 2 | 120 | 10.7 |
| 2 | 3 | 270 | 9.7 |
| 2 | 3.4 | 346.8 | 9.3 |
| 4 | 0.71 | 30.25 | 5.64 |
| 4 | 0.88 | 46.46 | 5.47 |
| 4 | 1.19 | 84.97 | 5.16 |
| 4 | 1.2 | 86.4 | 5.15 |
Material: stainless steel wire
Material quality:AISI302 sus302 SS201 SS304 SS304L SS316 SS316L SS310 SS310S SS430 SS309,etc
stainless steel wire USES
1. Used for screening and filtering under acid and alkali environmental conditions, as mud screen in petroleum industry, chemical fiber industry, as screen screen, electroplating...
Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries..
3: Used for screening and filtering under acid and alkali environment, for mud screen in petroleum industry, for screen in chemical fiber industry, for pickling screen in electroplating industry, our factory can design and produce various types of products according to the needs of users...
Product classification Stainless steel wire mesh product classification:
1. Plain-weave stainless steel wire mesh: The most common weaving method is widely used in industrial production and civil life. The main feature is that the density of the warp and weft wire diameters is the same.
2. Stainless steel square mesh material: galvanized iron wire, stainless steel wire, copper wire, aluminum wire, etc. Features: precise structure, uniform mesh, good corrosion resistance, strong and durable. It is widely used in industry and construction to screen sand, filter liquid and gas. It can also be used for the safety protection of mechanical accessories, etc., and it can also be used to replace wooden strips to make walls and ceilings.
3. Stainless steel mat mesh/dense-grain mesh Material: stainless steel wire, low carbon steel wire, nickel wire, copper wire, polyester wire, etc... Weaving: plain weave, twill weave, bamboo weave, contrast weave. Features: Good filtering accuracy, high load strength of contrast net. Uses: used in aerospace, petroleum, chemical, scientific research and transportation industries, and can also make lunch box nets, coal washing nets, etc.
